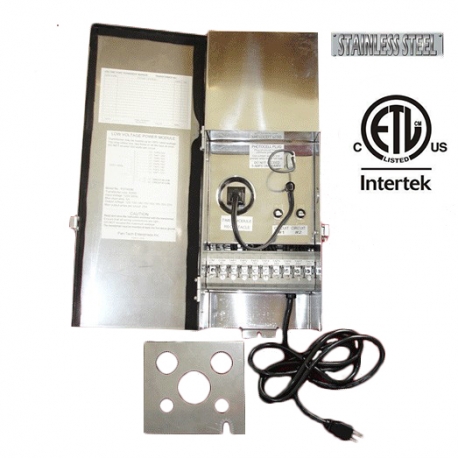

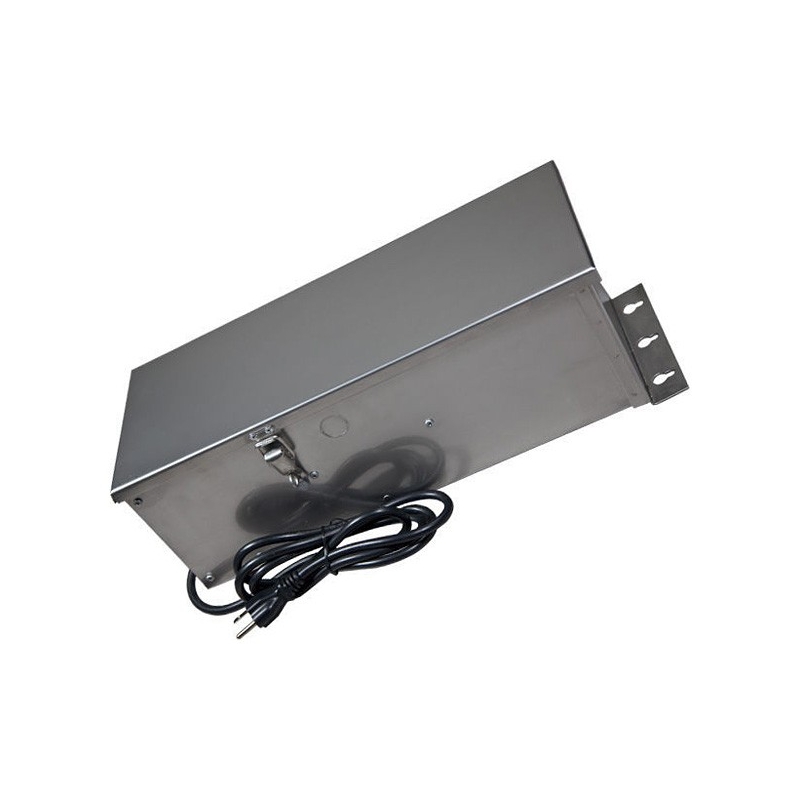

12V 900W Magnetic Landscape Lighting Professional Multi - Tap Transformer

New product

12V 900W Multi-Tap Landscape Lighting Transformer. With it's versatility and ease-of-use, this transformer is the professional's choice for outdoor landscape lighting! Available in Multi Tap voltages ranging from 12V-15V (standard) or 12V-22V (optional) for applications requiring very long runs! 304 Stainless Steel outdoor rated enclosure ensures many years of worry-free performance!

More details

$429.95

  • 12V - 15V
  • 12V - 22V

  • Pan-Tech 900W TR Series. Pan-Tech's professional-grade TR Series transformers are specifically designed to supply 12V to outdoor landscape lighting ranging from very short to very long runs. This 900 watt stainless steel transformer is timer and/or photocell ready (timer and/or photocell optional). Plug the transformer into an outdoor, 120v power outlet with GFCI receptacle, or hard-wire it. It's the perfect low voltage solution for LED landscape lights, pool, spa lighting, garden and fountain lighting.

    The TR series Multi-Tap Transformers provide the following features:

    • ETL Listed (Conforms to ANSI/UL Standard 1838 & 506)
    • Extra large terminal strip
    • Fully Encapsulated torroidal core
    • Multi taps of 12V, 13V, 14V & 15V (Additional taps of 17V, 20V & 22V Optional)
    • 304 stainless steel enclosures
    • Magnetic circuit breakers on common lines of secondary
    • 115 Amp terminal block for secure connections/quick installation
    • Built in ready outlets for photocell and/or timer options
    • Power bypass relay to protect any attached photocell and/or timer
  • Fixture Material Unfinished 304 Stainless Steel
    Voltage 12V
    Power Used 900W
    Dimensions 17.52" Length x 8.35" Width x 7.28" Depth
    ETL Listed Yes
    Warranty 10 years
