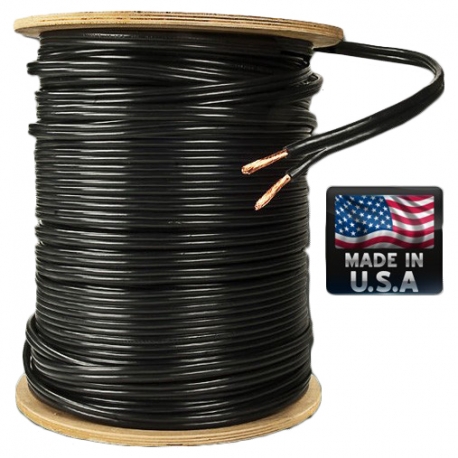

100 Foot Spool of 12 awg 2 strand (12/2) Landscape Lighting Direct Burial Cable. Premium professional grade low voltage direct burial cable, Made to last, 100% made here in the USA!
Warning: Last items in stock!
100 Foot Spool of 12 awg 2 strand (12/2) Landscape Lighting Direct Burial Cable. This 100 foot length of low voltage outdoor wire is designed for landscape lighting, security, and outdoor accent lighting applications. It features a UV resistant, black PVC coating, is suitable for direct burial, and is rated at 16 amps or 192 watts per run. The heavy duty 12 AWG wire features 2 conducting copper wires. Construction consists of stranded uncoated annealed copper conductors, laid parallel and insulated with polyvinyl chloride. Listed by UL, ETL or CSA. Our premium quality low voltage direct burial cable is 100% manufactured here in the USA!
Additional features of this low voltage direct burial cable below:
Construction – Our 12 awg 2 wire (12/2) landscape direct burial cable is constructed with 65/.0100" Stranding, 45 MILS (Insulation Min Ave Walls), and has the Nominal Dimensions of 0.390" x 0.195".
Conductors – Bunch or rope stranded uncoated annealed copper conforming to UL requirements.
Assembly – The two conductors are laid parallel and insulated. A continuous web shall keep the conductors together.
Insulation – Black polyvinyl chloride conforming to Underwriters Laboratories Class 43 60°C thermoplastic, suitable for direct burial. One leg has a raised ridge for polarity.
|Wiring||12 awg, 2 strand|
|Voltage||Designed for low voltage landscape lighting (12V - 24V). However the wiring is rated up to 150V.|
|Dimensions||100 Foot Length x 0.39" Width x 0.195" Thick|
