12V 300W Magnetic Landscape Lighting Professional Multi - Tap Transformer View larger

12V 300W Magnetic Landscape Lighting Professional Multi - Tap Transformer

New product

12V 300W Multi-Tap Landscape Lighting Transformer. With it's versatility and ease-of-use, this transformer is the professional's choice for outdoor landscape lighting! Available in Multi Tap voltages ranging from 12V-15V (standard) or 12V-22V (optional) for applications requiring very long runs! 304 Stainless Steel outdoor rated enclosure ensures many years of worry-free performance!

More details

$239.95

  • 12V - 15V
  • 12V - 22V

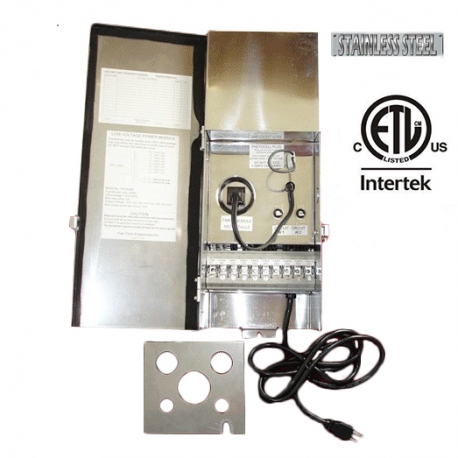

  • Pan-Tech 300W TR Series. Pan-Tech's professional-grade TR Series transformers are specifically designed to supply 12V to outdoor landscape lighting ranging from very short to very long runs. This 300W stainless steel transformer is timer and/or photocell ready (timer and/or photocell optional). Plug the transformer into an outdoor, 120V power outlet with GFCI receptacle, or hard-wire it. It's the perfect low voltage solution for LED landscape lights, pool, spa lighting, garden and fountain lighting.

    The TR series Multi-Tap Transformers provide the following features:

    • ETL Listed (Conforms to ANSI/UL Standard 1838 & 506)
    • Extra large terminal strip
    • Fully Encapsulated torroidal core
    • Multi taps of 12V, 13V, 14V & 15V (Additional taps of 17V, 20V & 22V Optional)

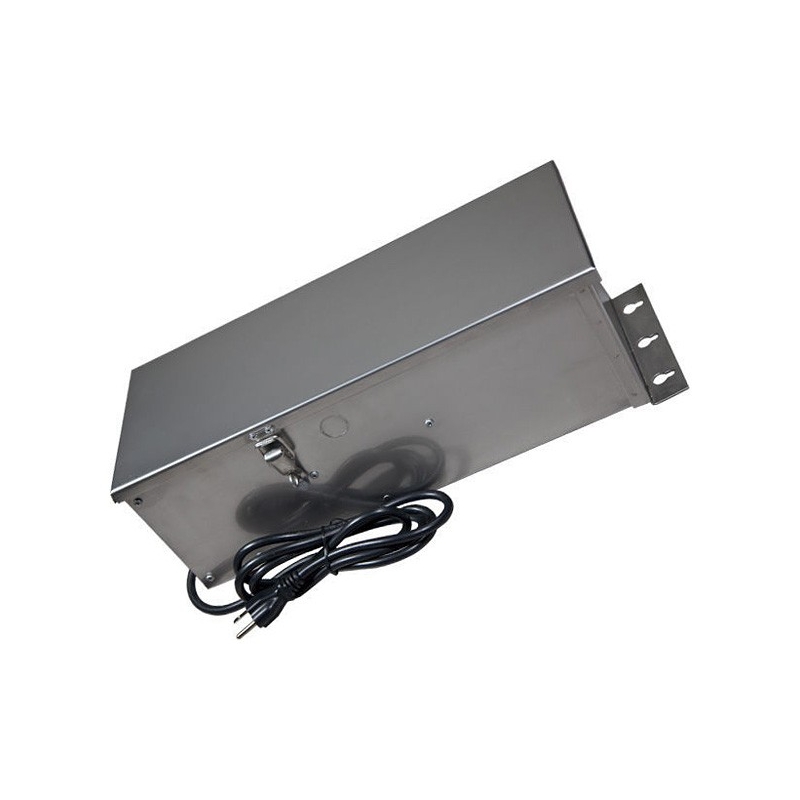

    • 304 stainless steel enclosures
    • Magnetic circuit breakers on common lines of secondary
    • 115 Amp terminal block for secure connections/quick installation
    • Built in ready outlets for photocell and/or timer options
  • Fixture Material Unfinished 304 Stainless Steel
    Voltage Converts 120V AC Line Voltage to 12V AC Low Voltage
    Power Used 300W
    Dimensions 16.54" Length x 6.58" Width x 6.02" Depth
    ETL Listed Yes
    Warranty 10 years
